MMP 25A-24V

DC MOTOR SPEED CONTROL



Reliable:

  • Designed to control the speed of a standard 24 Volt brushed DC motor
  • Maintenance free, robust design, solid state circuitry, minimal EMI / RFI noise
  • Potted, rugged construction design for harsh environments. (IP64 rated)

Versatile:

  • Operates from 18 to 32 VDC; battery or other DC supply
  • Peak “momentary” current is 40 amps (1 second max)

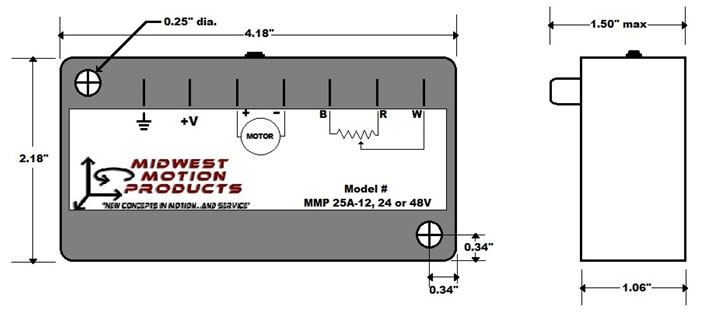

  • Easily installed to any flat surface – two ¼” diameter mounting holes
  • Output pulse width can be varied for 0% to 98% duty cycle, switches at 22 KHz
  • Compact size - 4.5” by 2” by 1.5” high.
  • 12 & 48 Volt DC design also available*

Economical:

  • Low cost, time-proven reliability, very low ripple output
  • Electronic design offers longer life than mechanical switches
  • Solid state design with state of the art components

Technical Specifications:

Supply Voltage

 18 to 32 Volts DC *

Output

Current Sinking

Voltage Drop

1 Volt Max, 1/2 V Typical

Current – Continuous / Peak (max)

15 Amps / 40 Amps (1 Second)

Humidity

to 100% condensing

Operating Temperature

-40 degrees to +85 degrees C

Storage Temperature

-50 degrees to +85 degrees C

Enclosure

Aluminum

Terminals

.250 x .020 Quick Disconnect Male

Operation:

  • The MMP 20A-24V-RSP Motor Speed Control operates on 18 to 32 Volts DC.
  • Controls speed of Brushed DC motor, by varying output pulse width from 0% to 98% duty.
  • Seven “fast-on” interconnects— two for 24 Volt power, two for the motor and three for the ‘pre-wired’ speed control potentiometer, one of which is included with each unit.

Protection:

  • Protect unit with a 25 amp slow-blow (or similar) fuse.
  • Adequate heat-sinking practices must be observed to attain 25 Amps of continuous current.
  • The polarity of the DC input voltage must be observed, or damage to the control could result.

Typical Applications:
Agricultural Machinery ~ Automated Guided Vehicles ~ Automotive & Transportation ~ Conveyors ~ Signage Motion ~ Battery Powered Robots ~ Chemical Feeder ~ Compressors ~ Conveyors ~ Fans & Blowers ~ Food Processing ~ Gear Motors ~ Hose & Cable take-up Reels ~ Hydrogen Generators ~ Linear Actuators ~ Mobile Robotics ~ Mobility and Accessibility Equipment ~  Paper Processing ~ Photo Processing ~ Portable Instruments ~ Pumps ~ RV’s ~ Ventilators ~ Vibratory Feeders ~ Wire Feeders
