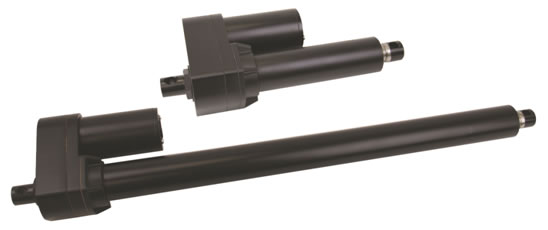

MMP LA-3 and MMP LE-8 SERIES LINEAR ACTUATORS
|
|
|
Click here for detailed MMP LA-3 SPEC SHEET (pdf opens in new window/tab)
MMP LA-3 SPECIFICATIONS |
| Gear Ratio |
5:1 |
10:1 |
20:1 |
30:1 |
| Input Voltage |
12 / 24 VDC |
| Load Capacity |
120N |
240N |
500N |
750N |
| Static Load |
2300N |
| Stroke Length |
50, 100, 150, 200, 250, 300mm |
| Speed At Full Load |
45mm/sec |
22mm/sec |
12mm/sec |
8mm/sec |
| Clevis Ends |
Ø6.4mm (Ø8mm Option |
| Screw |
ACME Screw |
| Duty Cycle |
25% |
| Operating Temp Range |
-26°C to 65°C (15°F to 150°F) |
| Limit Switch |
Built-In (Factory Preset) |
| Potentiometer |
10 Turns (10K) |
| IP Grade |
IP53 (IP65 Option) |
MMP LA-3 MODEL NUMBER DESIGNATION |
Example--> |
MMP LA3 - |
12V - |
20 - |
A - |
200 (-) |
P |
| |
Model |
Voltage |
Gear Ratio |
ACME Drive |
Stroke Length |
Additional Options |
Options: |
MMP LA-3 |
12 VDC |
5=5:1 |
(all) |
50mm |
P=Potentiometer |
Options: |
(all) |
24 VDC |
10=10:1 |
|
100mm |
|
Options: |
|
|
20=20:1 |
|
150mm |
IP65=Moisture |
Options: |
|
|
30=30:1 |
|
200mm |
Protection |
Options: |
|
|
40=40:1 |
|
250mm |
|
Options: |
|
|
|
|
300mm |
|
| Above example would read: MMP LA3-12V-20-A-200-P *(remove "P" if no potentiometer is needed)
|

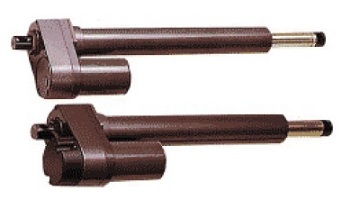

Click here for detailed MMP LE-8 Spec Sheet (pdf opens in new window/tab)
MMP LE-8 SPECIFICATIONS |
| Gear Ratio |
10:1 |
20:1 |
| Input Voltage |
12/24 VDC |
| Load Capacity |
150 Kg |
230 Kg |
| Static Load |
4500 N |
| Stroke Length |
100 / 150 / 200 / 300 / 450 / 600 mm |
| Speed at Full Load |
25 mm / sec |
13 mm / sec |
| Mounting |
Clevis to Clevis (different angles available) |
| Drive |
Self-Locking ACME Screw |
| Rated Duty Cycle |
25 % |
| Overload Protection |
Ball Detent Clutch |
| Operation Temp Range |
-26 C to 65 C |
MMP LE-8 MODEL NUMBER DESIGNATION |
Example--> |
MMP LE8- |
24V- |
20- |
A- |
300(-) |
|
|
| |
Model |
Voltage |
Gear Ratio |
ACME Drive |
Stroke Length |
Additional Options |
Rear Clevis Mounting Options |
Options: |
LE8 |
12 VDC |
5=5:1 |
(all) |
50mm |
P=Potentiometer |
Standard |
Options: |
|
24 VDC |
10=10:1 |
|
100mm |
(optional) |
C1 |
Options: |
|
|
20=20:1 |
|
150mm |
L=Limit Switches |
C2 |
Options: |
|
|
30=30:1 |
|
200mm |
(20:1 only) |
C3 |
Options: |
|
|
40=40:1 |
|
250mm |
|
C4 |
Options: |
|
|
|
|
300mm |
Protection |
C5 |
Above example would read: MMP LE8-24V-20-A-300 *(add "P" if potentiometer is needed)
|
*If Rear Clevis Mounting would be standard, no designation is necessary. Or, add C1, C2, C3, C4, C5 |
WIRING DETAILS
(Also Applies If Pot. Supplied)
When Positive To Red Wire = Retract
When Positive To Black + Extend
(Note: Opposite For 5:1 Ratio) |
