Products:
Servo Amplifiers
Input Voltage
Continuous Current
Peak Current

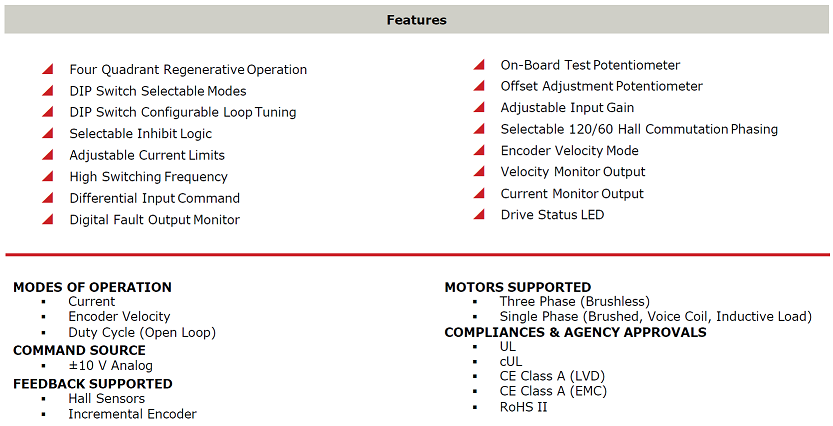

Features (all)
MMP 815-BR
20-80 Vdc
8 Amps
15 Amps (1 sec)

 • Command input = + or - 10 VDC

 • Closed Loop Servo Control     (tach or encoder)

 • Diagnostic LED's

 • Peak & RMS Current Limiting
MMP 1525-BR
60-170 Vdc
15 Amps
25 Amps (1 sec)
MMP 1525-BR-24V
20-100 Vdc
15 Amps
25 Amps (1 sec)
MMP 815-BL
20-80 Vdc
8 Amps
15 Amps (1 sec)
MMP 1525-BL
45-120 Vdc
15 Amps
25 Amps (1 sec)
MMP 1525-BL-24V
20-80 Vdc
15 Amps
25 Amps (1 sec)
MMP 1224-BL
200-360 Vdc
12 Amps
24 Amps (1 sec)

Additional Downloads: (note: amps with -BR in the part number are for brushed motors & amps with - BL are for brushless motors)

MMP 815-BR Operation Manual

MMP 1525-BR Operation Manual

MMP 1525-BR-24V Operation Manual

MMP 815-BL Operation Manual

MMP 1525-BL Operation Manual

MMP 1525-BL-24V Operation Manual

MMP 1224-BL Operation Manual



Speed Control Options can be found here




MMP provides a full set of detailed specifications for every product we sell, for your approval.
It is the sole responsibility of the end user to protect the product from any electrical and/or physical damage.
It is also the sole responsibility of the end user to determine the suitability of the product for their own application.
MMP warrants all of our products against defects in material and workmanship for a full year following the shipment of the item.

Please note that the Products on our site are only samples of our total product offering.
We offer a multitude of finished designs that can likely meet your exact requirements.
If you are unable to find a product that meets your requirements, please contact us
and we will make a recommendation from our thousands of released designs.

"Midwest Motion Products can provide you with prototypes from stock, ultra-fast turnaround on most short run orders, and minimal lead-times for large-scale Production."
No Minimum Order Quantities.

For more information on this product or any of the other product lines we carry, contact:
